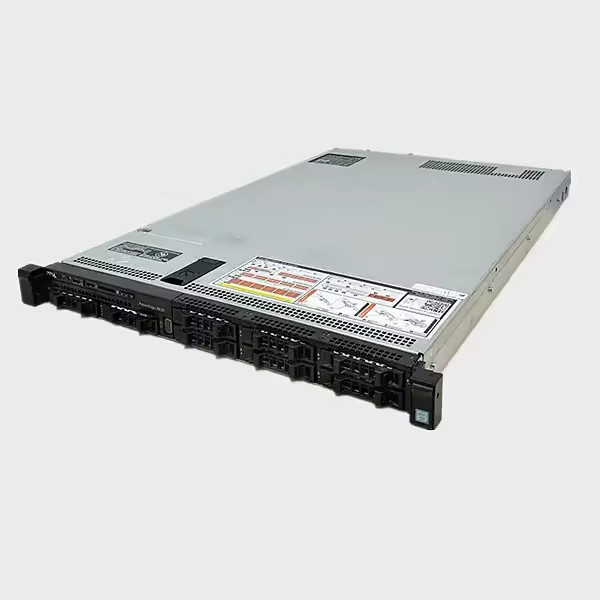

Dell Server R650 Xeon 4310 DELL Server / Rackmount 1u Blade Server

Name: Dell Server R650 Xeon 4310 DELL Server / Rackmount 1u Blade Server
Brand: Beijing Boyuan Weiye Technology Co., Ltd.
SKU: R650
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	DELL
Model Number:	R650

Detail Information

Place of Origin:

China

Brand Name:

DELL

Model Number:

R650

Processor Type:

Xeon Silver 4310

Model Number:

DELL R650

Memory:

DIMM Speed Up To 3200 MT/s

Place Of Origin:

Beijing,china

Form Factor:

1U Rack Server

Software RAID:

S150

Highlight:

High Light

Highlight:

4310 1u blade server

4310 dell server r650

xeon silver 4310 1u blade server

Trading Information

Minimum Order Quantity:

1 set

Price:

Negotiable

Product Description

Affordable price Server DELLs PowerEdge R650 Xeon 4310 DELL Server

Overview

Dell PowerEdge R650 Description

PowerEdge R650 Rackmount Server
Best-in-class performance and high scalability

Enterprise-class servers powered by 3rd generation Intel®Xeon® Scalable processors designed to optimize workload performance and data center density.

Optimal performance, high scalability, and data center density for demanding workloads

The dual-socket/1U PowerEdge R650 is the ideal rack server to address performance, high scalability, and density.
* Supports 8 channels per CPU, up to 32 DDR4 DIMMs at 3200 MT/s DIMM speed
* Address substantial throughput improvements with PCIe Gen 4 and up to 10 NVMe drives
* Ideal for traditional corporate IT, database and analytics, VDI, and AI/ML and Inferencing
* Optional Direct Liquid Cooling support to address high wattage processors

PRODUCT DETAILS

Processor	Up to two 3rd Generation Intel Xeon Scalable processors with up to 24 cores per processor
Chipset	IntelC620A chipset
Accelerators	Up to three 75 W single-width GPU
Memory	DIMM Speed Up to 3200 MT/s
Memory Type	RDIMM LRDIMM NVDIMM Intel Persistent Memory 200 series (BPS)
Memory Module Slots	32 DDR4 DIMM slots
Maximum RAM	RDIMM 2 TB LRDIMM 4TB NVDIMM 128 GB Intel Persistent Memory 200 series (BPS) 8TB
Front Bays	Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Rear bays	Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB
Internal Controllers	PERC H745, H345, HBA355I, H755, H755N
External Controllers	PERC H840, HBA355E
Internal Boot	Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB Internal Dual SD Module or Internal USB 3.0
Power Supplies	800 W Platinum AC/240 V Mixed Mode 1100 W Titanium AC/240 V Mixed Mode 1400 W Platinum AC/240 V Mixed Mode 1100 W DC -48 - 60 V Hot plug power supplies with full redundancy option
Network Options	2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
Front Ports	1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA
Rear Ports	1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 2 x RJ-45 1 x VGA (optional for liquid cooling configuration)
Slots	Up to 3 x PCIe Gen4 low profile slots (all x16 except one x8 slot with SNAPI I/O option) or 2 x PCIe (Gen4) full height slots
Video Card	1 x VGA (optional for liquid cooling configuration)
Form Factor	1U rack server
Dimensions	Height 42.8 mm (1.68 inches) Width 482 mm (18.97 inches) Depth 809 mm (31.85 inches) – without bezel 822.84 mm (32.39 inches) – with bezel
Weight	21.2 kg (46.7 lbs)
Rack Support	ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks.
