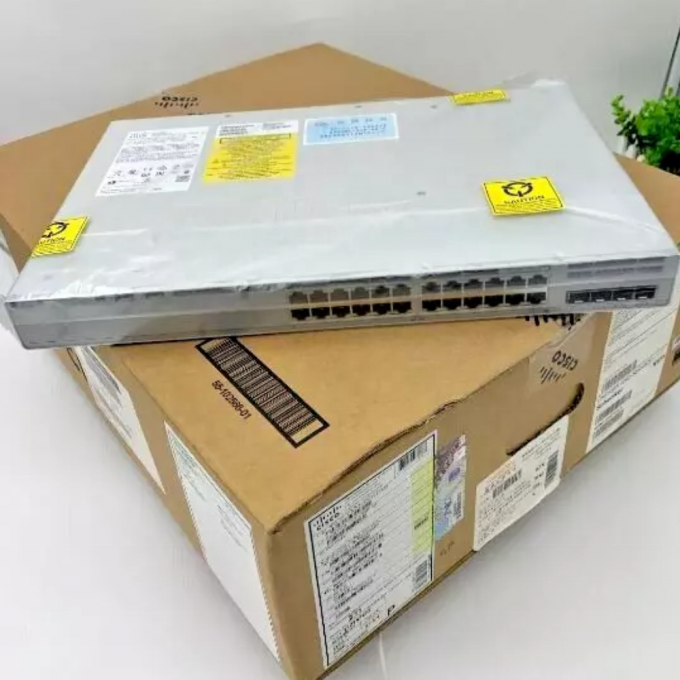

C9200L-24T-4X-E Cisco Catalyst 9200 Layer 3 Switch 24 X Gigabit Ethernet Network Manageable Switch C9200L-24T-4X-E in Stock

Name: C9200L-24T-4X-E Cisco Catalyst 9200 Layer 3 Switch 24 X Gigabit Ethernet Network Manageable Switch C9200L-24T-4X-E in Stock
Brand: Beijing Boyuan Weiye Technology Co., Ltd.
SKU: C9200L-24T-4X-E
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Cisco
Model Number:	C9200L-24T-4X-E

Detail Information

Place of Origin:

China

Brand Name:

Cisco

Model Number:

C9200L-24T-4X-E

Model:

Cisco Catalyst 9200L-24T-4X-E

Uplink Ports:

4 X 10G SFP+ Fixed Uplinks

Switching Capacity:

128 Gbps

Forwarding Rate:

190.4 Mpps

Software:

Network Essentials

Stacking Bandwidth:

80 Gbps

Trading Information

Minimum Order Quantity:

1 set

Price:

Negotiable

Payment Terms:

T/T

Product Description

C9200L-24T-4X-E

The Cisco Catalyst C9200L-24T-4X-E is a high-performance managed switch designed for enterprise networks. It features 24 x Gigabit Ethernet ports and 4 x 10G SFP+ uplink ports, making it ideal for high-speed connectivity and network expansion. This Layer 3 switch supports advanced routing protocols such as static routing, OSPF, and EIGRP. It offers a switching capacity of 64 Gbps and supports stacking with Cisco StackWise-480, allowing for scalable and redundant configurations. The switch is suitable for medium to large enterprises needing reliable and efficient network solutions with high bandwidth and low latency.

Cisco Catalyst C9200L-24T-4X-E Specifications
Specification	Details
Model	Cisco Catalyst C9200L-24T-4X-E
Description	24-Port Gigabit Ethernet Switch with 4 x 10G SFP+ Uplinks, Layer 3 Switch
Product Type	Managed Switch
Form Factor	1U Rack-Mountable
Ports	24 x 10/100/1000 Ethernet ports
Uplink Ports	4 x 10G SFP+ Ports
Power over Ethernet (PoE)	No PoE support
Total PoE Budget	N/A
Switching Capacity	64 Gbps
Stacking Bandwidth	80 Gbps (StackWise-480)
Forwarding Rate	38.69 Mpps
Layer	Layer 2/Layer 3
DRAM	2 GB
Flash	4 GB
MAC Address Table	32,000 entries
VLAN Support	4,096 VLANs
Jumbo Frame Support	Yes, up to 9216 bytes
Stacking	Cisco StackWise-480 (up to 8 units)
Port Mirroring	Yes
Redundancy Features	Redundant power supplies, hot-swappable fans
Power Supply	1 x Internal PSU (250W), optional redundant PSU
Hardware Forwarding	Yes
3 Protocolsaver	Yes
Layer 3 Protocols Supported	Static Routing, RIP, OSPF, EIGRP, PBR, VRRP, HSRP
Quality of Service (QoS)	8 Queues, Weighted Round Robin (WRR), Strict Priority
IPv6 Support	Yes
PoE+ Features	N/A
Dimensions (H x W x D)	1.73 x 17.5 x 12.9 inches (44 x 445 x 328 mm)
Weight	7.3 kg (16.1 lbs)

C9200L-24T-4X-E

The **Cisco Catalyst C9200L-24T-4X-E** is a high-performance managed switch designed for enterprise networks. It features 24 x Gigabit Ethernet ports and 4 x 10G SFP+ uplink ports, making it ideal for high-speed connectivity and network expansion. This Layer 3 switch supports advanced routing protocols such as static routing, OSPF, and EIGRP. It offers a switching capacity of 64 Gbps and supports stacking with Cisco StackWise-480, allowing for scalable and redundant configurations. The switch is suitable for medium to large enterprises needing reliable and efficient network solutions with high bandwidth and low latency.

Cisco Catalyst C9200L-24T-4X-E Specifications
Specification	Details
Model	Cisco Catalyst C9200L-24T-4X-E
Description	24-Port Gigabit Ethernet Switch with 4 x 10G SFP+ Uplinks, Layer 3 Switch
Product Type	Managed Switch
Form Factor	1U Rack-Mountable
Ports	24 x 10/100/1000 Ethernet ports
Uplink Ports	4 x 10G SFP+ Ports
Power over Ethernet (PoE)	No PoE support
Total PoE Budget	N/A
Switching Capacity	64 Gbps
Stacking Bandwidth	80 Gbps (StackWise-480)
Forwarding Rate	38.69 Mpps
Layer	Layer 2/Layer 3
DRAM	2 GB
Flash	4 GB
MAC Address Table	32,000 entries
VLAN Support	4,096 VLANs
Jumbo Frame Support	Yes, up to 9216 bytes
Stacking	Cisco StackWise-480 (up to 8 units)
Port Mirroring	Yes
Redundancy Features	Redundant power supplies, hot-swappable fans
Power Supply	1 x Internal PSU (250W), optional redundant PSU
Hardware Forwarding	Yes
3 Protocolsaver	Yes
Layer 3 Protocols Supported	Static Routing, RIP, OSPF, EIGRP, PBR, VRRP, HSRP
Quality of Service (QoS)	8 Queues, Weighted Round Robin (WRR), Strict Priority
IPv6 Support	Yes
PoE+ Features	N/A
Dimensions (H x W x D)	1.73 x 17.5 x 12.9 inches (44 x 445 x 328 mm)
Weight	7.3 kg (16.1 lbs)
